Independent Engineering Review Framework & Perspective Windows
Engineering Manufacturing Operations
Cross-Functional Design-Review Fieldbook

Give Every Reviewer the Context They Actually Need

Explore practical design-review cases for engineering, manufacturing, assembly, purchasing, and project stakeholders.

Explore Review WindowsOpen a Review Case
Engineering

Geometry & Specs

Manufacturing

DFM & Tooling

Assembly

Fixtures & Steps

Purchasing

BOM & Lead Times

Politehnica University of Bucharest Robotics Case Study
Featured: Robotics System Case
Multi-Window
Review Window5 Isolated Perspectives
Targeted InquiriesZero General Noise
Structured Review Outcomes

Measurable Results from Windowed Engineering Reviews

Replacing open-ended design critiques with scoped, role-specific inquiry eliminates ambiguity, prevents costly downstream revisions, and aligns technical teams.

Definitive Sign-Off

Unambiguous Go/No-Go Decision Milestones

Engineering reviews transition from conversational debates into binary, verifiable validations against predefined physical and dimensional criteria.

Zero unresolved stakeholder blockers
Iteration Reduction

Elimination of Late-Stage Re-Spins

Manufacturing and assembly constraints are captured during initial CAD passes rather than during tooling release or first-article production.

Early tooling constraint discovery
Domain Alignment

Pre-Filtered Functional Perspectives

Each specialist evaluates strictly what aligns with their expertise—preventing purchasing delays over CAD aesthetics or engineering rework from procurement blindspots.

Strict role-scoped checklists
Objective Evidence

Standardized Criteria Over Subjectivity

Subjective design opinions are replaced with concrete verification metrics: manufacturing limits, tolerance stackups, and supplier availability parameters.

Fact-based evaluation protocols
Focus Conservation

Streamlined Review Sessions

Dedicated inquiry tracks prevent meetings from wandering off-topic, keeping engineering leads and cross-functional teams focused on core risk vectors.

Concise, targeted session agendas
Accountability

Audit-Ready Traceable Records

Every design decision is documented alongside its corresponding functional window, creating an immutable institutional log for future engineering cycles.

Transparent engineering log

Ready to structure your next design review?

Explore our practical field guides and role-specific inspection frameworks.

Read Practical Guides Explore Review Cases

The operational cost of unguided design reviews

When engineering, manufacturing, and operations inspect CAD models without targeted perspective windows, meetings default to circular debates and critical manufacturing constraints go unnoticed until physical prototyping.

Current process friction estimator

6
4
1.5
3
Quarterly Meeting Hours
468 hrs

Direct engineering hours consumed in multi-stakeholder sessions

Rework Friction Scale
351 hrs

Time lost to re-opening resolved geometric and assembly questions

Total Quarterly Engineering Capacity Absorbed
819 Cumulative Hours

Request detailed loss breakdown

Receive an objective, checklist-aligned mapping of review friction points across Engineering, Manufacturing, Assembly, and Operations windows.

No automated guarantees. Fieldbook analytical framework only.

Engineering review toolchain & connected stack

Explore the cloud instruments, simulation environments, and lifecycle management platforms configured to support distinct reviewer perspectives across hardware programs.

Onshape

Engineering & Assembly Window

Cloud-native parametric modeling platform enabling simultaneous multi-user geometry review, version branching, and fine-grained change tracking without local file checkouts.

Core Inquiry: Geometric clearance & kinemactics
Integration: Real-time multi-seat workspace
Cloud native Primary CAD

Arena PLM

Stakeholder & Quality Window

Centralized product lifecycle management system connecting bills of materials, engineering change orders (ECO), and regulatory compliance audits into structured sign-off loops.

Core Inquiry: BOM revision & compliance history
Integration: Direct Onshape release hook
ECO governance Lifecycle control

NVIDIA Isaac Sim

Operations & Motion Window

Omniverse-powered photorealistic physical simulation engine for testing robotic workcells, kinematic stress, collision bounds, and sensor synthetic data prior to physical tooling.

Core Inquiry: Dynamic payload & path limits
Integration: USD pipeline & Isaac SDK
GPU accelerated Digital twin

Quarter20

Manufacturing & Sourcing Window

Specialized hardware sourcing and fastener standardization toolkit embedded in early review checkpoints to prevent non-standard component proliferation and supply bottlenecks.

Core Inquiry: Off-the-shelf availability & lead times
Integration: CAD fastener index sync
Supply risk Component sanity

Altium Connector

ECAD-MCAD Co-Design Window

Direct bi-directional synchronizer uniting printed circuit board layouts, enclosure clearances, keep-out zones, and thermal boundary checks into unified joint reviews.

Core Inquiry: PCB envelope & connector headers
Integration: Live ECAD sync plugin
Cross-domain Mechatronics

Cloud MBD Suite

Manufacturing Window

Direct model-based definition workflow embedding product manufacturing information (PMI), GD&T datum references, and surface finishes natively into the 3D model.

Core Inquiry: Machining tolerance & datum scheme
Integration: ASME Y14.41 standard
Drawingless GD&T direct

Methodology guideline: Tool selection follows role inquiry

Never mandate every reviewer open the native CAD tree. Provide manufacturing, sourcing, and product leads with tailored windows matching their required decision criteria.

Review unresolved items
Review Protocol Workflow

From Model Freeze to Verified Sign-Off

A systematic four-phase framework designed to eliminate ambiguous feedback and replace disorganized meetings with targeted inquiry windows.

01

Frame Role Windows

Assign dedicated perspective boundaries. Define what manufacturing, engineering, purchasing, and operations specifically need to examine.

Question Scoping
02

Isolate Geometry

Extract relevant sub-assemblies, datum references, and interface tolerances so reviewers do not get distracted by unrelated components.

Drawing Prep
03

Targeted Walkthrough

Conduct the evaluation strictly against predefined criteria. Stop open-ended reactions and capture exact technical decisions.

Inquiry Session
04

Log & Decision Lock

Distinguish between informal comments and formal sign-offs. Convert actionable revisions into assigned engineering action items.

Outcome Matrix
Phase 01 Active Protocol Focus: Objective Scoping & Window Distribution

Framing the Inquiry Window Before the Session

Before inviting engineers and manufacturing leads, the project owner formulates explicit boundary questions for each role, avoiding broad requests for generic feedback.

Read Protocol Guide All Practical Guides
Practical Fieldbook Rule
Never enter a review asking 'What do you think?' — specify the exact acceptance criteria.
Explore Rule
Before the Review

A Design Review Is Not Just Showing the 3D Model

Opening a complex CAD assembly and asking cross-functional teams for general feedback invites unfocused debates, delayed approvals, and overlooked manufacturing constraints. Effective reviews require structured perspective windows before the session begins.

The Conventional Failure

The Unstructured 'Show-and-Tell' Model

Presenting the full assembly without predefined role-based questions leads to reactive commentary rather than verified technical compliance.

  • Vague feedback requests like "Any thoughts on this revised geometry?"
  • Purchasing reviews geometric tolerances instead of raw material lead times
  • Manufacturing finds tooling access issues only after detail drawings are finalized
  • Meetings end with long comment lists but zero confirmed sign-off decisions
The Fieldbook Standard

Targeted Review Windows

Every participant inspects the same CAD design through an isolated, role-specific lens with precise questions and defined approval criteria.

  • Clear inquiry scoped per discipline before the session is scheduled
  • Strict separation between advisory feedback and blocking approval gates
  • Designers present specific delta-views and interface clearances
  • Predictable decision pathways with agreed open-risk tolerances
Interactive Lens Explorer

What Each Reviewer Actually Needs to Inspect

Select a perspective window

Engineering & Stress Analysis Window

"Does this geometry satisfy interface loads, safety margins, and structural performance requirements?"

Mandatory Checklist Focus:
Structural Rigidity Thermal Expansion Gaps Critical GD&T Datums
Review Scope:Parametric geometry, load paths
Exit Gate:FEA validation sign-off
Typical Blocker:Unresolved stress singularities

Manufacturing & Tooling Window

"Can this geometry be fabricated with standard tooling and predictable cycle times?"

Mandatory Checklist Focus:
Tool Reach & Draft Angles Standard Cutter Radii Stock Material Sizing
Review Scope:Machining setups, mold draft
Exit Gate:DFM review approval
Typical Blocker:Non-standard tooling depths

Assembly & Line Sequencing Window

"Can line operators fasten, align, and torque these components without blind insertion?"

Mandatory Checklist Focus:
Fastener Tool Clearance Poka-Yoke Orientation Sub-assembly Sequence
Review Scope:Assembly ergonomics, line fixtures
Exit Gate:DFA assembly step sign-off
Typical Blocker:Colliding torque wrench heads

Operations & Supply Chain Window

"Are specialized materials, single-source fasteners, or long lead-time parts required?"

Mandatory Checklist Focus:
Preferred Vendor Catalog Component Lead Times Second-Source Availability
Review Scope:BOM line items, approved vendors
Exit Gate:Procurement feasibility sign-off
Typical Blocker:26-week lead time components

Stakeholder & Product Window

"Does this engineering iteration preserve original user requirements, timeline, and unit cost targets?"

Mandatory Checklist Focus:
User Experience Bounds Unit Cost Envelope Milestone Commitments
Review Scope:Product requirements, project budget
Exit Gate:Release phase confirmation
Typical Blocker:Unapproved scope creep
Explore Fieldbook GuidesView Reference Cases
Review Window 01 • Engineering Discipline

Does the geometry satisfy the requirement?

When opening the Engineering Window, reviewers strip away supplier lead times, assembly line ergonomics, and packaging logistics. The focus remains singular: verifying that every boundary constraint, tolerance stack, load path, and functional clearance strictly conforms to the product specification.

Window Scope Active Protocol
4 Verification Nodes

Isolated geometric rigor before cross-functional handoff

Role-Specific Inquiry Checklist

Select a category to filter technical check items for this review phase.

Kinematic Degrees of Freedom & Stroke Travel

Kinematics

Are limit stops, linkage pivots, and extreme travel envelopes constrained within dynamic operating bounds under nominal thermal expansion?

Verify CAD Motion Study Critical Requirement #GEO-01

Datums & GD&T Dimensional Accumulation

GD&T

Do reference datum structures originate from functional alignment interfaces rather than arbitrary outer surfaces?

Verify 1D/3D Tolerance Stack Critical Requirement #GEO-02

Structural Continuity & Load Transfer Vectors

Load Paths

Does geometry present sudden sectional transitions or stress risers along primary reaction paths during peak shear cycles?

Verify FEA Mesh & Fillet Radii Critical Requirement #GEO-03

Envelope Interference & Keep-Out Boundaries

Kinematics

Are wire routing channels, fastener clearance heads, and dynamic component sweeps fully outside designated electrical keep-out zones?

Verify Interference Matrix Critical Requirement #GEO-04

Review Boundary Discipline

Engineering review meetings derail when cross-window debates pollute the geometric inspection. Maintain these strict protocol fences:

In Scope for Engineering
  • Stress concentrations & factor of safety
  • Nominal clearance & dynamic fit
  • Functional datum reliability
Defer to Next Windows
  • CNC toolpath accessibility → Manufacturing
  • Hardware unit costs → Purchasing
  • Tooling cycle times → Operations

Master Multi-Perspective Reviews

Understand how one single assembly splits into four unique inquiry protocols.

Read Practical Guide
ReviewWindow Protocol Reference
Step 1 of 5 • Engineering Window must reach nominal sign-off before Manufacturing Window opens.
View Onshape Case All Field Guides
Review Perspective 02

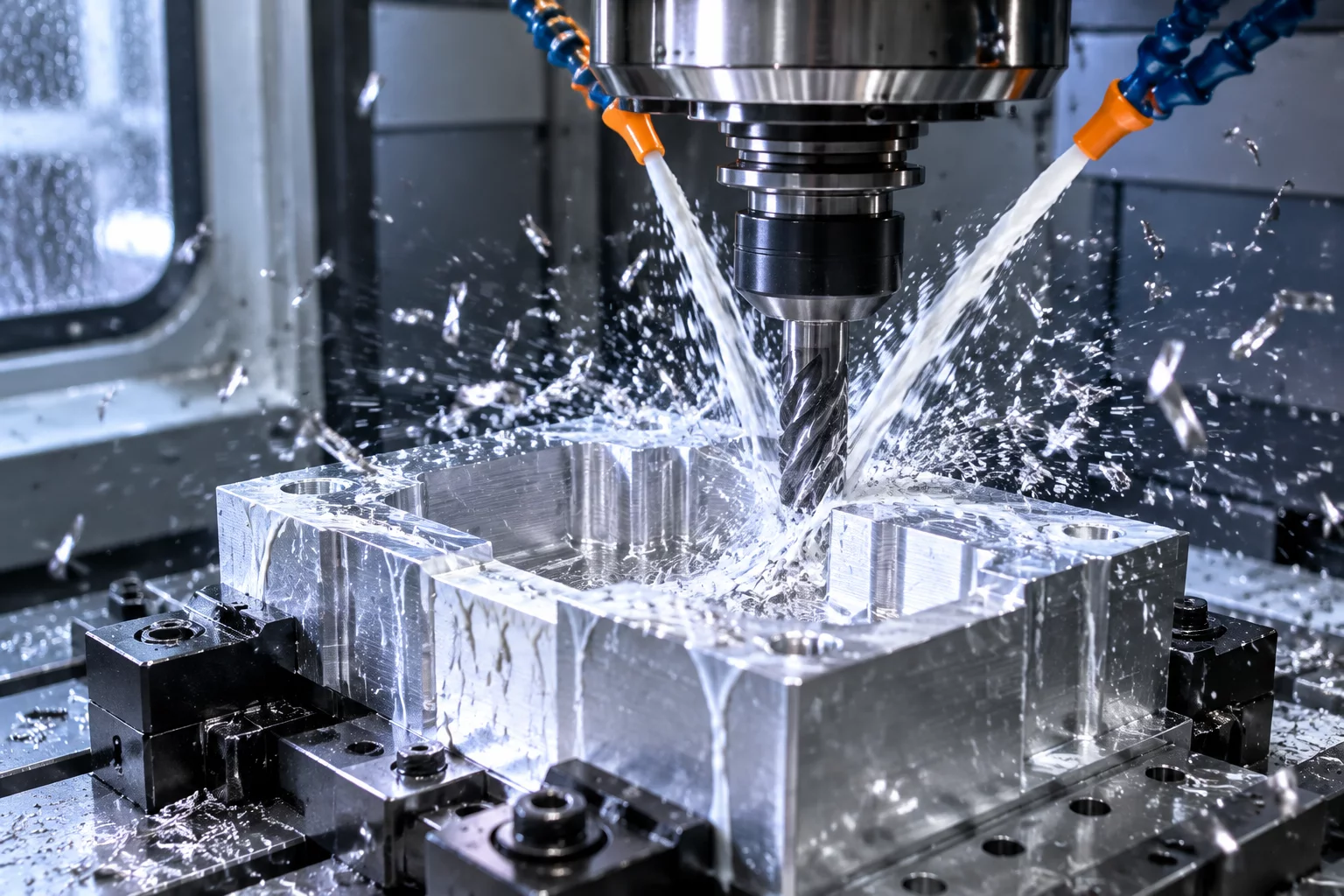

Manufacturing window: can this be made and assembled as intended?

Instead of open-ended model browsing, the manufacturing reviewer examines targeted fabrication realities. Isolate machining reach, standard gauge availability, and assembly clearance before design lock.

Manufacturing sign-off criteria

Role-bounded verification ensures feedback concentrates strictly on producibility and fixture clearance.

Machining & Tooling MFG-Q1

Tool reach and pocket corner radii

Are internal fillets scaled to standard end-mill radii, eliminating excessive multi-axis repositioning or custom EDM operations?

Critical Producibility
Level 1
Machining & Tooling MFG-Q2

Stock sizing & clamping datum

Does raw stock dimensioning leave adequate purchase area for primary CNC vise fixturing without secondary post-machining operations?

Fixturing Setup
Level 1
Tolerances & GD&T MFG-Q3

Datum alignment with functional faces

Are datum reference frames consistent with inspection CMM probing routines and realistic machining plane references?

Inspection Ready
Level 2
Tolerances & GD&T MFG-Q4

Tolerance stack risk at mating tabs

Have statistical worst-case and RSS tolerance stacks been verified against thermal expansion limits under operating conditions?

Assembly Risk
Level 2
Assembly & Clearances MFG-Q5

Driver access and fastener orientation

Is direct linear torque wrench access unobstructed by surrounding chassis walls, eliminating blind blind-rivet installations?

Ergonomics & Speed
Level 1
Assembly & Clearances MFG-Q6

Poka-yoke error-proof keying

Are symmetrical sub-assemblies keyed with offset alignment pins to physically block reverse installation on the line?

Mistake Proofing
Level 3
Review Window Rule

Never ask manufacturing to approve design intent.

The manufacturing reviewer must exclusively confirm feasibility, tooling access, cycle cost constraints, and assembly repeatability. Isolate structural performance to the Engineering Window.

Read Guide All Guides
Review Window 03 Assembly Specialist & Line Lead Perspective

Assembly process constraints and sequence verifications

When evaluating a design through the Assembly Window, the central question is not merely whether parts fit, but whether they can be positioned, secured, and validated in an unambiguous physical order without tool collision.

Core Assembly Verification Gates

Select an inspection gate below to review specific geometric criteria, tool access boundaries, and common failure modes identified on the production floor.

Onshape MBD Referenced Manufacturing Guide
Sequence Verification Mandatory Gate

Unidirectional Insertion Hierarchy

Reviewing whether the mechanical stack permits assembly along a primary Z-axis without requiring mid-cycle inversions, awkward angled insertions, or entrapping preceding sub-assemblies.

Review Question

Can any internal component be installed out of order, trapping wires or unfastened brackets beneath secondary structures?

Verification Standard

Verify that all retaining clips and wiring harnesses have clear pathways prior to casing enclosure closure.

Tool Clearance Verification Mandatory Gate

Torque Driver & Socket Envelopes

Ensuring that every threaded joint accounts for real-world pneumatic or electric torque driver diameters, extension bit lengths, and perpendicular head engagement angles.

Review Question

Does the 3D model leave at least 18mm radial clearance around fastener head axes for standard calibration bits?

Verification Standard

No fasteners placed closer than 12mm to deep internal pocket walls without dedicated clearance cutouts.

Hardware Unification Mandatory Gate

Fastener Count & Head Type Rationalization

Limiting operator tool-swapping cycles on the line by consolidating screw thread sizes, drive standards (e.g. Torx T20 across all chassis joints), and length variances.

Review Question

Can similar adjacent fasteners of differing lengths (e.g., M4x10 vs M4x12) be unified to prevent cross-threading risks?

Verification Standard

Target a maximum of 2 drive drive types per major assembly station to eliminate setup latency.

Error-Proofing Mandatory Gate

Asymmetric Geometry & Alignment Dowels

Confirming that symmetrical-looking covers, gaskets, and brackets possess physical keying ribs or offset guide pins preventing 180-degree reversed installation.

Review Question

Is it geometrically impossible to orient this symmetrical bracket backwards and still engage mounting fasteners?

Verification Standard

Implement offset dowel pin patterns or chamfered corner registration bosses on all dual-orientation panels.

Human Factors Mandatory Gate

Hand Grip Clearance & Tactile Feedback

Auditing that tight structural enclosures allow natural hand insertion for wire connectors, and that snap-fit tabs provide distinct tactile and audible confirmation.

Review Question

Does the operator have direct line-of-sight and two-finger grasp width when mating internal electrical connectors?

Verification Standard

Maintain minimum 25mm hand insertion perimeter around harness junction clips.

Fieldbook Assembly Checklist Signoff
Inspect Case Application
Review Window 05 • Stakeholder & Project Window

Does the change still support the original use case?

Evaluating architectural decisions through product viability, mission alignment, customer impact, and lifetime operational continuity before engineering freeze.

Core Inquiry

Primary Operational Alignment Verification

When geometric modifications or material revisions solve manufacturing challenges, do they inadvertently degrade the end-user workflow or invalidate field requirements?

Mission Parameter Gate

Confirm dimensions and clearance adaptations maintain targeted duty cycles, operator ergonomics, and service envelope specifications.

Functional Tradeoff Audit

Verify that cost-reduction geometry alterations do not compromise non-negotiable secondary operating modes.

Protocol Checklist05 / 05

Product Gate Matrix

Every stakeholder review must sign off on these four boundary verification criteria prior to stage release:

  • Target Persona ContinuityOriginal primary use-case persona remains fully served.
  • Unit Economics ThresholdDirect material cost variance remains within ±3.5% bounds.
  • Timeline SensitivityZero unmitigated critical path dependencies added.
  • Certification TrajectoryRegulatory compliance trajectory validated with test lab.
Reviewing vs Approving Guide
Cross-Role Perspective: Product Strategy Purchasing Gate Engineering Baseline
Define Decision Criteria
Structured Review Questions

What each reviewer actually needs to look at

A design review collapses when everyone looks at the same 3D model without a dedicated lens. Review windows isolate the mandatory criteria for each engineering and operational discipline.

Engineering focus

Does the geometry satisfy the functional specification?

The engineer verifies structural integrity, clearance thresholds, kinetic envelope, and standard CAD modeling fidelity before handoff.

Primary risk:Constraint violation
Scope limit:Exclude pricing debates
Read inquiry guide
Q1Geometry check

Kinematic range and zero-interference

Are dynamic parts fully checked against worst-case spatial envelopes across all extreme operating states?

Validation: Simulation & Mate limits
Q2Structural

Load path and safety factors

Does the revised section thickness maintain calculated yield margins under cyclic or peak fatigue loads?

Validation: FEA boundary report
Q3Tolerancing

GD&T datum scheme viability

Are datum references placed on physically inspectable surfaces that reflect real functional alignment?

Validation: Stack-up calculation
Q4Model integrity

Parametric stability & versions

Is the feature tree free of broken external references and pinned to an immutable release milestone?

Validation: Version branch freeze
Manufacturing focus

Can this be produced reliably within process capability?

The manufacturing specialist inspects stock material access, tool reach, draft angles, fixture clamps, and cycle-time traps.

Primary risk:Unmachinable geometry
Scope limit:Ignore market roadmaps
Read manufacturing guide
Q1Tooling

Tool access and standard cutter radii

Are internal pocket corners radiused to standard endmill diameters without demanding EDM burns or specialty tooling?

Validation: DFM Tool clearance
Q2Molding / Cast

Draft angles and parting line continuity

Do all molded faces have minimum 1.5° draft with wall thicknesses controlled against sink mark formation?

Validation: Wall thickness analysis
Q3Setup efficiency

Number of re-clamping operations

Can features be machined in three or fewer setups, or does the part require custom multi-axis fixturing?

Validation: Setup count audit
Q4Yield stability

Process capability index (Cpk)

Are critical tight tolerances realistic for standard shop floor machinery without high scrap rates?

Validation: Cpk > 1.33 feasibility
Assembly focus

Can operators assemble and test this repeatedly without errors?

The assembly review examines hand clearance, mistakeproofing (poka-yoke), fastener commonality, and maintenance access.

Primary risk:Ergonomic or blind traps
Scope limit:Do not rewrite requirements
Read preparation guide
Q1Ergonomics

Driver angle and sightlines

Can torque tools reach every screw head perpendicularly without requiring blind insertions or custom bits?

Validation: Tool envelope clearance
Q2Mistakeproofing

Asymmetric alignment keys

Is it physically impossible to mount the subassembly upside-down or reversed during line operations?

Validation: Keyway / Pin location
Q3Standardization

Fastener consolidation

Has the design eliminated unnecessary thread pitches and lengths to reduce assembly station tool changes?

Validation: Fastener count audit
Q4Serviceability

Wear part replacement path

Can consumable seals, bearings, and cables be serviced without dismantling major structural frames?

Validation: Disassembly order check
Purchasing focus

Are unusual components, single-source materials, or long leads introduced?

The purchasing representative verifies supply-chain exposure, second sources, minimum order quantities, and custom stock risks.

Primary risk:Sole-source lead delay
Scope limit:Do not evaluate stress FEA
Read perspective guide
Q1Sourcing

Off-the-shelf vs custom ratio

Does this revision introduce proprietary fasteners or brackets where commercial COTS parts would suffice?

Validation: Catalog equivalence
Q2Lead times

Raw material market availability

Is the specified alloy or resin readily stocked by approved distributors with less than 6-week delivery?

Validation: Approved vendor list
Q3Risk control

Second-source qualification

Can alternate suppliers fulfill this specification without requiring re-tooling or engineering redesign?

Validation: Dual-source sign-off
Q4Batch volume

MOQ and volume price tiers

Does the planned production volume match optimal tier breakpoints to avoid inventory lockup?

Validation: Unit economics analysis
Stakeholder focus

Does the design modification preserve the original product intent?

The product manager and project leads evaluate customer ergonomics, baseline requirements, scope creep, and certification impact.

Primary risk:Scope drift & re-testing
Scope limit:Avoid CAD micromanagement
Read decision guide
Q1User journey

Impact on user experience

Does the structural change affect external touchpoints, tactile feedback, indicator visibility, or styling?

Validation: UX requirement map
Q2Compliance

Certification & safety standards

Does this alteration trigger mandatory regulatory re-testing or void pre-compliance EMC/safety filings?

Validation: Compliance matrix
Q3Timeline

Project milestone delivery

Does addressing this review finding threaten critical tooling release dates or planned field testing?

Validation: Schedule variance delta
Q4Scope control

Boundary of requested changes

Is the current proposal confined to solving the target ticket without sneaking unverified features into production?

Validation: Scope boundary check

Ready to frame your next engineering review?

Explore real-world review workflows and practical guides on structuring clear questions.

Browse practical guidesExplore review cases
Audit Trail & Accountability

The Anatomy of an Engineering Decision Record

A design review without a structured output is merely an informal conversation. The ReviewWindow methodology mandates the explicit, real-time fixation of four immutable artifacts before any stage gate is marked complete.

Output Pillar 01

Fixated Decisions

Irrevocable engineering and procurement agreements approved across all review windows during the session.

Approved geometry & revision tags
Manufacturing material lock (e.g., AL6061-T6)
Supplier tooling authorization status
Scope: Binding Locked
Output Pillar 02

Assigned Follow-Ups

Singularly assigned engineering actions paired with explicit deliverables and deterministic calendar deadlines.

Single named owner per task
CAD modification revision commit
Re-run FEA thermal cycle benchmark
Accountability: Single DRI Actionable
Output Pillar 03

Unresolved Questions

Legitimate architectural conflicts and unvalidated assumptions deliberately documented rather than glossed over.

Weldment distortion tolerance budget
Blind fastener accessibility in final jig
Second-source component lifecycle risk
Risk: Flagged Deferred
Output Pillar 04

Information Still Required

Missing physical empirical parameters, vendor datasheets, or compliance certifications that block green-lighting.

Supplier raw-stock mill certs
Torque-to-yield destructive test data
High-vibration cycle sensor logs
Prerequisite: External Pending
Standard Fieldbook Output Artifact

Live Review Log Snapshot: Actuator Housing Assembly

Main-Branch v3.4 2026-10-01
Pillar Category Recorded Entry Assigned Role / DRI Stage Resolution
Decision Approved M6 helicoil inserts in favor of direct tapped magnesium threads. Rationale: Eliminates pull-out failure during field service disassembly cycles.
Lead Mechanical Eng.
Locked into 3D CAD
Follow-Up Re-route harness clearance to maintain minimum 8.5mm airgap from manifold wall. Deliverable: Updated ECAD-MCAD harness bounding envelope commit.
ECAD Systems DRI
Due in 48 Hours
Unresolved Can automated pick-and-place nozzle reach secondary flange recess at line speed? Risk: Potential manual staging station requirement on Assembly Line 2.
Manufacturing Lead
Open Review Item
Info Required Anodizing coating thickness certification curve under saline exposure standard. Source: Surface treatment vendor supplier documentation packet.
Purchasing Rep
Awaiting Vendor
Read Guide: How to Define Decisions Explore Real Case Reviews

Featured Design Review Cases

Detailed field breakdowns examining multi-stakeholder CAD models, revision checkpoints, and discipline-specific review criteria.

All Review Cases

Practical review protocols & field manuals

Structured inquiry procedures to replace vague feedback requests with role-calibrated engineering criteria.

All Field Guides
Who This Fieldbook Is For

Built for Cross-Functional Review Participants

ReviewWindow Fieldbook is an independent educational resource for everyone who prepares, runs, or signs off an engineering design review.

Engineering leads Manufacturing teams Product-development managers Suppliers Technical project managers Hardware startups Engineering students
